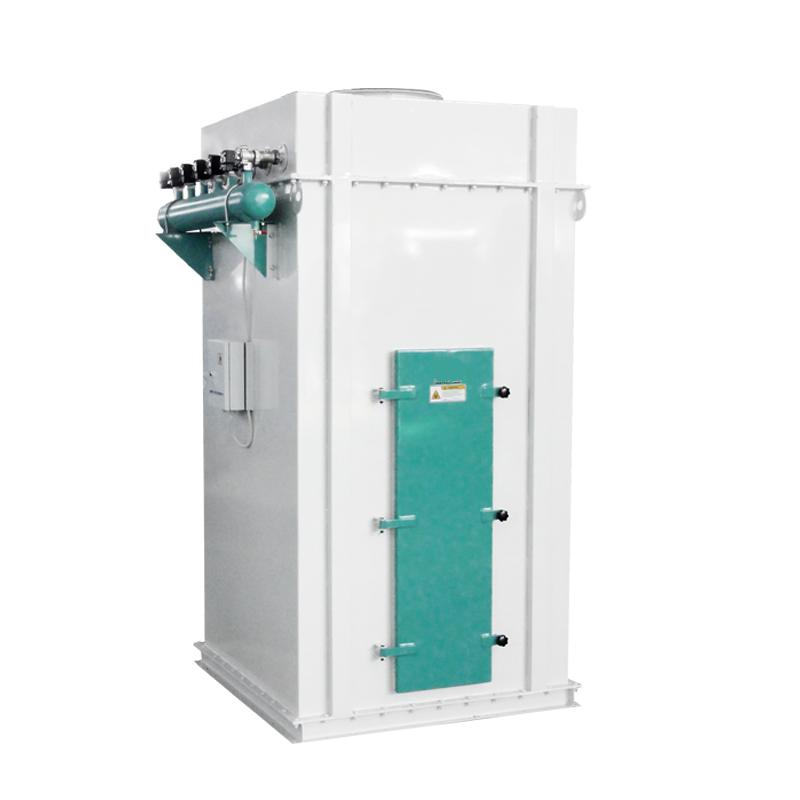

Square Pulse Filter
< Features >
1.Direct connect by special air bag and solenoid valve to ensure the less damage to the solenoid valve diaphragm
and the stable and reliable running.
2.High-tech and famous product, original structure, compact cr-aftsmanship.
3.Double inlet, flexible layout, small covered area.
4.High efficiency dedusting (≥99.9%).
5.The choice of bag can be ultra-fine, temperature resistance, humidity resistance,antistatic depends on user needs.
6.Mainly used for charging pot, requirement of negative pressure and less dedusting volume place.
7.Small size is the feature of this kind of pulse filter.
< Teachnical Parameters >
| Model | Filtering Area(m3) | Treating Air Flow(m3/h) | Bag Size(Ф) |
| TBLMFa6-1000 | 2.3 | 276-552 | 120x100 |
| TBLMFa9-1000 | 3.4 | 408-816 |
| TBLMFa12-1000 | 4.5 | 540-1080 |
| TBLMFa15-1500 | 8.5 | 1020-2040 | 120x1500 |
| TBLMFa21-1500 | 11.9 | 1428-2856 |
| TBLMFa24-1500 | 13.6 | 1632-3264 |
| TBLMFa28-1500 | 15.8 | 1896-3792 |
| TBLMFa32 | 18.1 | 2172-4344 |
| TBLMFa36 | 27.1 | 3255-6510 | 120x2000 |
| TBLMFa40 | 30.1 | 3617-7234 |
| TBLMFa48 | 36.2 | 4340-8680 |
| TBLMFa56 | 42.2 | 5064-10128 |
| TBLMFa64 | 48.2 | 5788-11576 |
