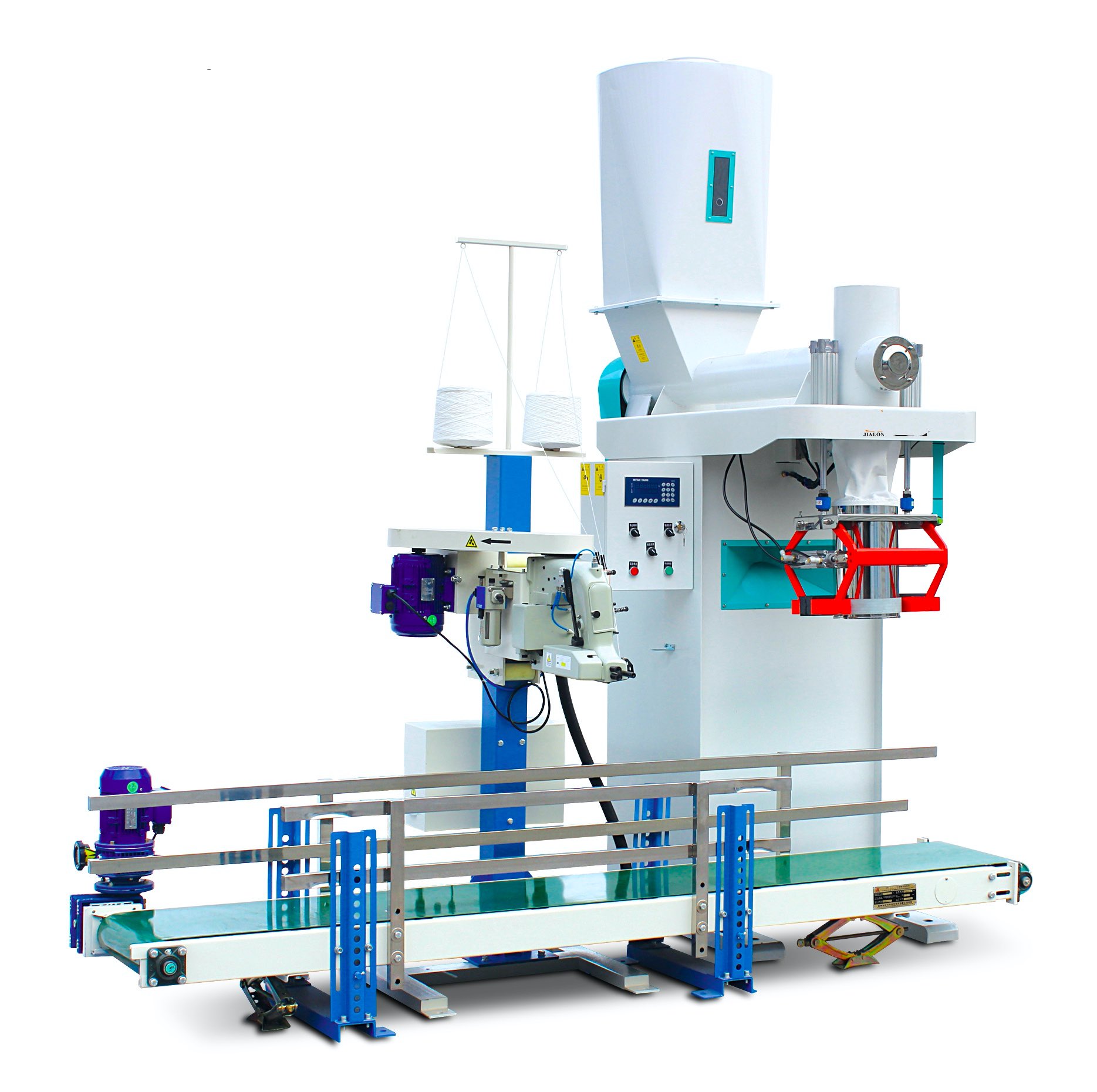

< Small Bag Packing Machine Features >
1. Using the size of feeding, install quickly switch cut-off gate.
2. All the parameters are inputted by the panel.
3. The speed of feed,quantitative bag and undo the bag are controlled automatic.
4. Imported intelligent weighing instrument can display the gross weight and net weight simultaneously.
5. Automatic peeling weight function.
6. Automatic zero tracking.
7. Automatic detection and correction of weighing error.
8. With the gross and net weight, total number of packages display function,achieve the production process of
quantitative management(with a computer or printer connected).
9. The whole system is provided with a dust suction opening, to improve the working environment.
10. Package range:15-50kg/package.
< Small Bag Packing Machine Technical parameters >
| Model | Feeding way | Package range
(kg/bag) | Capacity
(bag/min) | Package Accuracy |
| SDBY-1 | DC dual-cylinder speed feeding | 15-50 | 3-5 | 0.2% |
| SDBY-2 | DC dual-cylinder speed feeding | 15-50 | 4-7 | 0.2% |
| SDBY-3 | DC dual-cylinder speed feeding | 15-50 | 6-9 | 0.2% |
| SDBY-4 | DC dual-cylinder speed feeding | 15-50 | 8-12 | 0.2% |
