Silo capacity from 10t to 1250t, with hopper bottom.

Conic Bottom Storage silo bins Features

1.Hopper bottom steel silo are famous for its automatic discharging process.

The grain inside silos could unload automatically due to gravity, and very efficient;

2.The steel legs are made of H beam which have good quality and bearing.

3.2 kinds of angle-45 degree and 60 degree, among which the 60 degree conical-bottom is usually used to store larger pellet and powdered materials of high viscosity.

4.Hot dip galvanized steel sheets, 275g/m2 coating galvanizing.

5.Bolt and screw connected, assembly and easy maintenance.

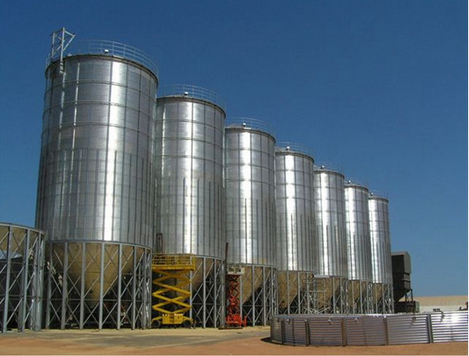

The picture below is silo corn seed storage silo bins.

Advantage:

1. Lower basic cost with lightweight, low request for foundation, low consumption of steel.

2. High degree of standardization. We can produce the standard components which can be installed on-the-spot.

3. Simple, easy and efficient to install within a short amount of time due to superior component design which are connected by standard bolts.

4. Easy to understand .

5. Easy to maintain.

6. Low cost and long tenure of use. The cost of bolted silo is just 35%-50% of the cement silo with the same specification; and its life span can reach 30 years.

7, Hopper bottom silo advantage is can natural flow, but it is capacity limited, capacity no more than 1250tons.

silo storage silo bins Structure

1. Roof

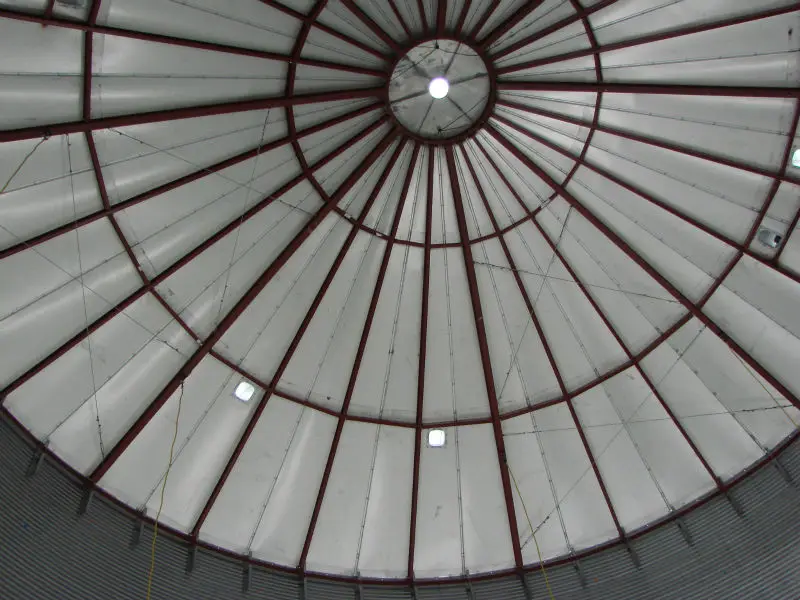

Roof is made up of radiated beam, roof cover board, tension ring, ventilator scoop, roof cap, etc.

The space age construction technology, which is adopted in the design of the silo framework, can ensure the stability of silo under the large span. There is a guardrail around the silo eaves and there is also a manhole on top of the roof.

2. The Africa silo corn seed storage silo bins Body

Include the wall plate, column, manhole, roof ladders and so on.

(1) The wall sheet

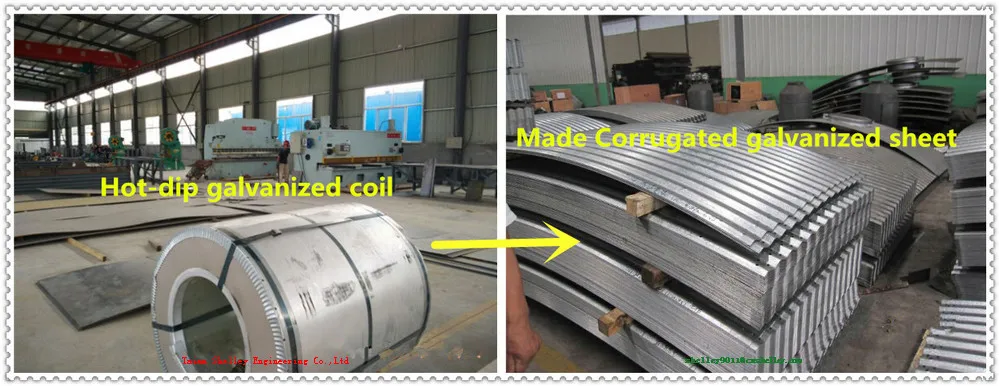

Our steel is hot galvanized, which makes it durable and weather resistant. Our advanced bolts with spherical washer and the resisting-worn rubber are used to ensure the tightness and using period.

(2) Africa silo corn seed storage silo bins Stiffeners

The column, made by the Z-bar, is used to reinforce the silo body. It is connected by junction panels.

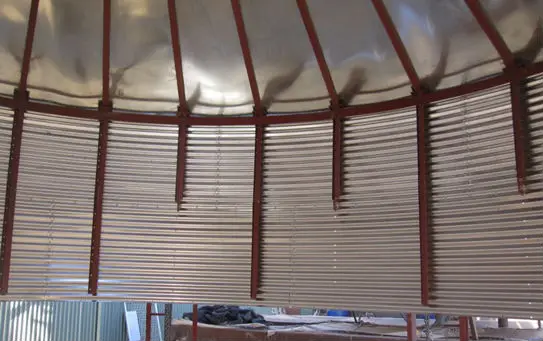

Inside stiffener

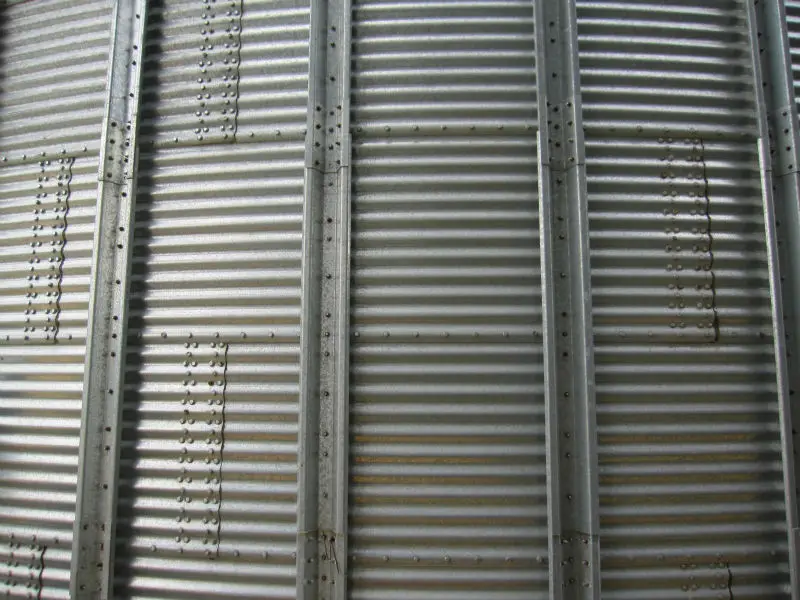

Outside stiffener

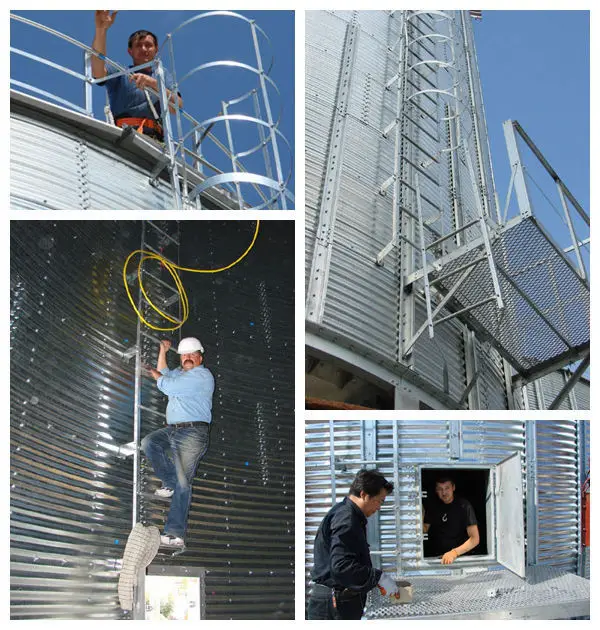

(3) Africa silo corn seed storage silo bins door and Roof Ladders

There are inspection door and ladders inside and outside the silo body. It is convenient and accessible for any maintenance work.

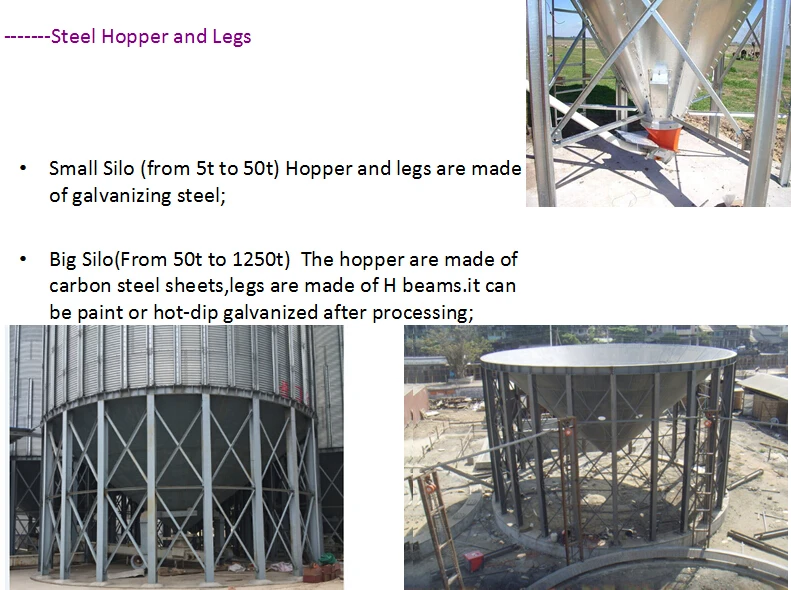

3. Africa silo corn seed storage silo bins Hopper bottom
