【Features】
1. It is applicable for drying corn, wheat, barley .etc
2. Low power and energy consumption
3. It can be adjusted the drying speed according to the moisture request
4. Continuous feeding and discharging and high output.
【Technical parameters】

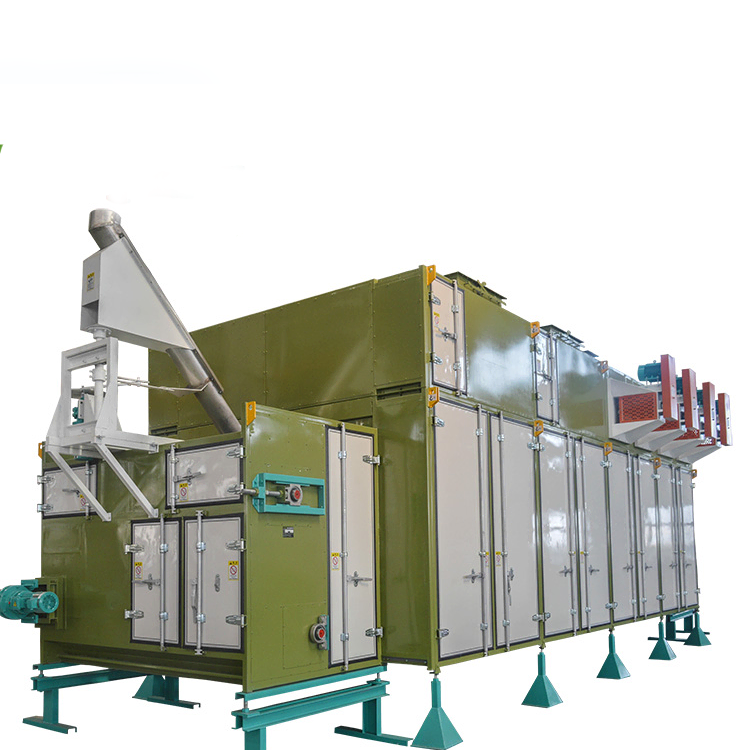

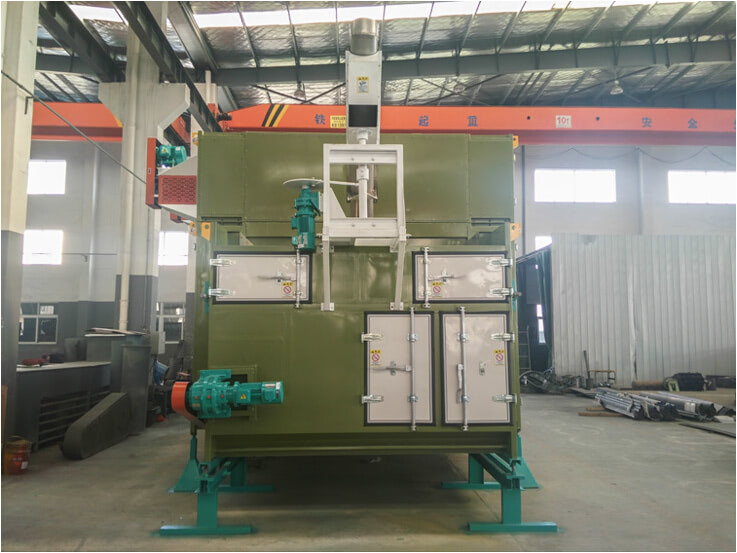

Model: YHGJ Series
Capacity: 5t/h
Steam consumption: 1300（Kg/h） Steam pressure:(0.4-0.6)MPa
Water evaporation: 850（kg/h）
Overall dimensions(L*W*H): 12355×5224×4135mm
【Attractive advantages】
1.The dryer internal version more than the average supplier
2.The dryer is heat preservation and heat insulation layer, small amount of heat loss
3.The dryer heat transmission part is equipped with refractory mortar coating, can prolong its life
4.Dryer moisture on-line automatic testing, other suppliers have no this function, in the process of drying,
automatic control, without human care, save manpower
【ISO9001&CE Certificates】
【Working Principle】
After the dehydrated wet materials enter the drum dryer, fliped by the shovelling plate device which are
uniform distribution in the drum cylinder. The materials are evenly distributed in the drum cylinder, fully
contact with the hot air, speed up the drying heat and mass transfer. During the drying process, under
the effect shovelling plate and hot treatment, the materials after drying are discharging from star type
valve which in another section of the rotary dryer. Rotary drum dryer is suitable for drying various types
of materials which the moisture content is less than 85%.
